Ile-iṣẹ Ologbele-Universal (Ori Pipin
* Ẹya
1.The awọn ọna iyipada ọpa ifiweranṣẹ jẹ pataki kan apoju awọn ẹya ara ti awọn arinrin lathes.
2.It ti wa ni kq ti awọn ojuomi-katiriji ara ati awọn ọpa-dimu fun orisirisi gige irinṣẹ fun processing ṣiṣẹ bi iyipo ti nkọju si, opin ti nkọju si, gige, knurling, liluho, fífẹ boring ati reaming, ati be be lo.
3.The iga ti irinṣẹ le ti wa ni ofin ati ipo ojulumo si awọn centerline ti ẹrọ spindle.
4.It ẹya ita ọpa-iṣagbesori, ọpa-ibaramu, awọn ọna ọpa-iyipada, nla konge ni ipo ati nla líle ati be be lo.
* Awọn ohun elo 5 (post ọpa 1, awọn ohun elo 3 ti apakan alapin, dimu ohun elo 1 pẹlu ijoko V fun awọn iho yika)
| Nkan no. | Awoṣe | kọọkan ṣeto pẹlu | NW(kgs) |
| 560-200 | M | 1Pcs 501-M, 3Pcs 502-M ati 1pcs 503-M | 2.89 |
| 560-300 | AR-AP | 1Pcs 501-AR-AP, 3Pcs 502-AR-AP ati 1pcs 503-AR-AP | 4.29 |
| 560-400 | A | 1Pcs 501-A.3Pcs 502-A ati 1pcs 503-A | 8.9 |
| 560-500 | BR-BP | 1Pcs 501-BR-BP.3Pcs 502-BR-BP ati 503-BR-BP | 12.89 |
| 560-600 | B | 1Pcs 501-B.3Pcs 502-B ati 1pcs 503-B | 17.26 |
| 560-700 | C | 1Pcs 501-C,3pcs 502-C ati 1pcs 503-C | 22.55 |
| 560-800 | D | 1pcs 501-D,3pcs 502-D ati 1pcs 503-D | 44.75 |
| Awoṣe | lathe golifu | I | AH7 | H | L | R | T max | z | O pọju | Morse No. | ΦD | M | H1 | |
| Min | O pọju | |||||||||||||
| M | 180-250 | 57.7 | 18 | 24 | 34 | 45 | 8 | 16 | 56 | 14 | 1 | 7 | 27 | 18 |
| AR-AP | 250-300 | 64.5 | 18 | 25 | 41 | 56 | 9 | 16 | 63 | 16 | 1 | 8 | 30 | 16 |
| A | 250-350 | 82 | 24 | 32 | 42 | 60 | 12 | 20 | 75 | 18 | 2 | 10 | 35 | 20 |
| BR-BP | 300-380 | 91.6 | 28 | 38 | 53 | 75 | 13 | 25 | 90 | 20 | 3 | 10 | 40 | 20 |
| B | 350-500 | 100.0 | 30 | 47 | 65 | 85 | 15 | 32 | 100 | 24 | 3 | 12 | 48.2 | 25 |
| C | 500-650 | 115.3 | 38 | 51 | 72 | 94 | 19 | 32 | 108 | 26 | 4 | 14 | 58.2 | 26 |
| D | 650-1200 | 133 | 42 | 61 | 95 | 120 | 21 | 40 | 139 | 35 | 5 | 14 | 65 | 40 |
* Ifiweranṣẹ Ọpa Iyipada Yara
| Nkan no. | Giga aarin (mm) |
| 501-M | 120 |
| 501-AR-AP | 140 |
| 501-A | 170 |
| 501-BR-BP | 200 |
| 501-B | 230 |
| 501-C | 280 |
| 501-D | 350 |
* Irin dimu Ọpa Bits
* Irin dimu Ọpa Bits
| Nkan no. | Awọn irin-iṣẹ onigun mẹrin ti o pọju ati onigun T(mm) |
| 502-M | 16 |
| 502-AR-AP | 16 |
| 502-A | 20 |
| 502-BR-BP | 25 |
| 502-B | 32 |
| 502-C | 32 |
| 502-D | 40 |
* Ọpa dimu fun Yika Shanks
| Nkan no. | O pọju idaduro Dia(mm) |
| 503-M | 14 |
| 503-AR-AP | 16 |
| 503-A | 18 |
| 503-BR-BP | 20 |
| 503-B | 24 |
| 503-C | 26 |
| 503-D | 35 |

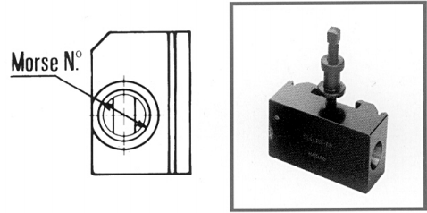

* Ifunni agbara
| Nkan no. | Taper Iho |
| 504-M | 1MT |
| 504-AR-AP | 1MT |
| 504-A | 2MT |
| 504-BR-BP | 3MT |
| 504-B | 3MT |
| 504-C | 4MT |
| 504-D | 5MT |
